Applications & Use Cases

Typical application domains

• Test bench commissioning and validation
• Hydraulic system diagnostics
• Flowmeter failure analysis
• Service and troubleshooting in the field
• Production monitoring during setup and optimization

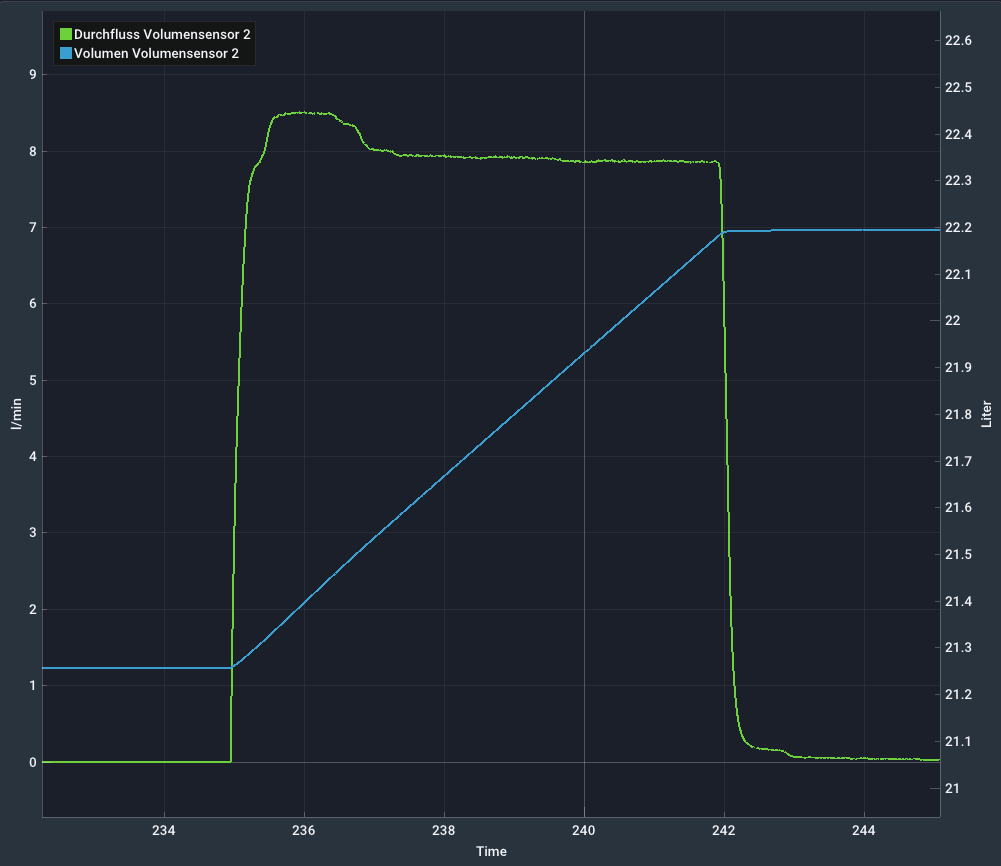

Example 1: Pump startup behavior

Goal: Verify startup transients and detect overshoot.

Recommended setup:

• Flow signal on channel 1
• Optional pressure or auxiliary analog signal on channel 2
• Trigger condition on threshold crossing (flowrate > 0.0 l/min)

Expected outcome:

• Time correlation of flow rise, peak, and settling behavior
• Comparable runs for before/after parameter changes

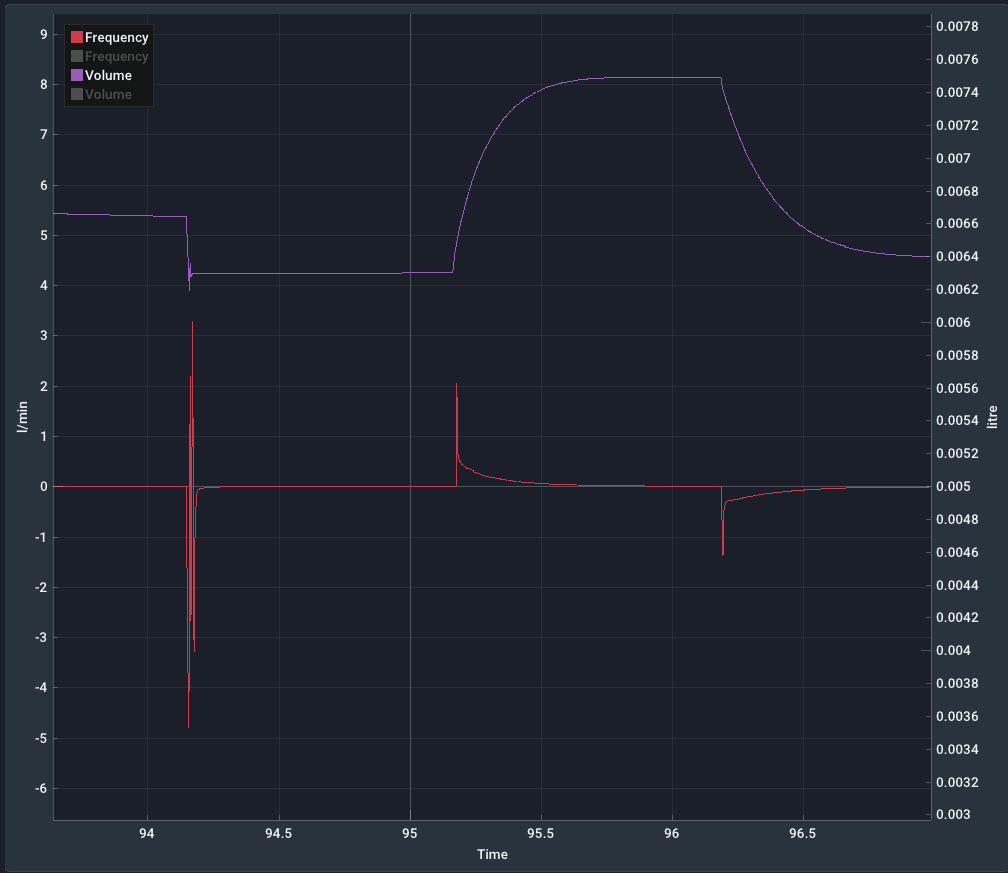

Example 2: Peak and overshoot detect

Goal: Detect pressure peaks to find source of system failures.

Recommended setup:

• High sample rate and low filter
• Save recordings with additional infos (placement of flowmeter, pressure conditions, fluid)
• Use cursor statistics to measure peaks

Expected outcome:

• Quantitive analysis of peaks and adding countermeasures

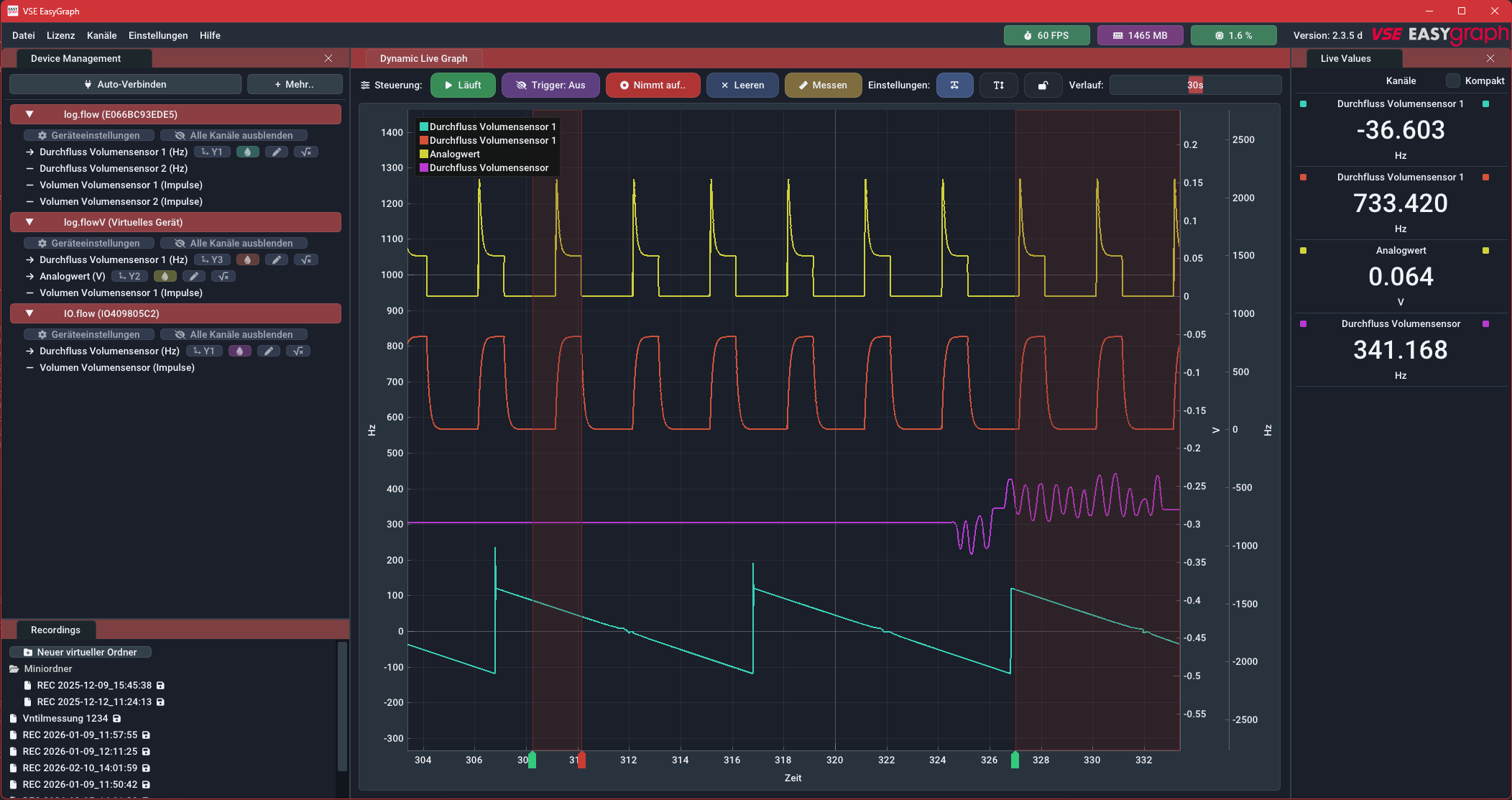

Example 3: Multi-device acquisition

Goal: Capture many channels from several devices in one session.

Recommended setup:

• Connect multiple supported devices
• Combine channels using math channels
• Color channels by unit and assign consistent axis mapping
• Use compact live values for high channel count

Expected outcome:

• Scalable acquisition with theoretically unlimited channels (depending on system resources)
